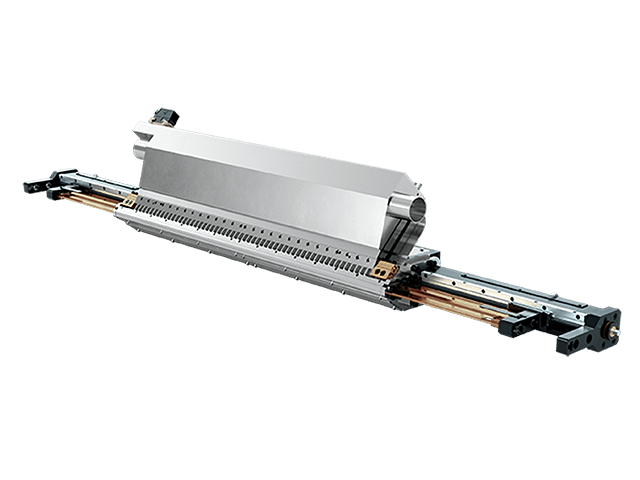

Flexible Packaging Lamination Dies
Suitable Resins: LDPE, LLDPE, EVA, PP, and other extrusion coating & lamination grade resins.
Suitable Substrates :BOPET, BOPP, BOPA, aluminum foil (Retort Pouches, Coffee Packaging Bags
Feature
-
1.Designed for food flexible packaging and printing & converting lamination lines. The optimized die lip geometry shortens the air gap between the die and the substrate, ensuring uniform polymer distribution even at high line speeds of 200–300 m/min.
2. Equipped with an on-the-run internal deckling system and trimless technology, effectively reducing edge trim waste without interrupting production.
3.Can be integrated with an Automatic Die Control System to enhance production stability during high-speed operation.
Catalog Download
Add to
inquiry cart
| SPECIFICATIONS | |
| Width | 500 ~ 5000mm |
| Die lip opening | 0.6 ~ 1 mm |
| Extrusion capacity | 100 ~ 500 kg/hr |
| Width adjustment | internal deckle system |
| Deckle adjustment | manual or motor drive |
Use Field
INDUSTRIAL CONSTRUCTION MATERIAL
AUTOMOBILE AVIATION
PHOTOELECTRIC NERGY SAVING
STATIONERY COMMODITY
FOODS TABLE WARES
MEDICINE HYGIENE
